คำอธิบาย:

Magnetic LED Retrofit is an LED module with up to 130lm/w (Ra>90, R9>50, SDCM<3). Magnet tool-free installation, easy to maintain, saves labor costs. It is widely used to replace the traditional T5/T8 fluorescent tube light inside grille lights in offices, schools, hypermarkets, and retail stores.









คุณสมบัติ:

>การออกแบบสิทธิบัตรเพื่อทดแทนหลอดฟลูออเรสเซนต์ T5/T8 แบบเดิมในแถบ Troffer

>ฟิลด์กำลังและสี (3CCT) -ปรับได้

> Up to 130lm/w@4000lm (Ra>90,R9>50, SDCM<3)

>Magnet Tool-ติดตั้งฟรี บำรุงรักษาง่าย ประหยัดค่าแรง

>ประหยัดพลังงานมากขึ้น 80% เมื่อเทียบกับหลอดฟลูออเรสเซนต์

Send Inquiry
Download
Description
Technical Parameters

การแนะนำ:

Toppo Magnetic LED Retrofit is a time-saving alternative to directly replace fluorescent lamps with LEDs. High efficacy up to 135 lm/w (Ra>90, R9>50, SDCM<3), power switch from 14-30W, 3CCT switch from 3000K/4000K/5000K, various sizes of L540mm, L1160mm, L1460mm. With magnetic, tool-free installation, in just 1 minute, your existing fluorescent tube fixtures (recessed, strip, wrap, etc.) can be converted to energy-efficient, long-lasting LED lights while preserving the look of your space.



รหัสการสั่งซื้อ

กำลังไฟพิกัด

แอลเอ็ม/ดับบลิว

ลูเมน

SDCM/Ra

คลาสไอพี

มิติข้อมูลผลิตภัณฑ์

GW/หีบ

จำนวน/หีบ

TU100-02N-PT1-24F10-01 14W/24W แบบ.120 ประเภท 1680/2880 SDCM<3/Ra80,90 IP20 L540xW26xH24 9.91กก 25 ชิ้น
TU100-04N-AT1-30F10-01 14W/30W แบบ.130 ประเภท 1820/3900 SDCM<3/Ra80,90 IP20 L1160xW26xH24 14.93กก 25 ชิ้น
TU100-05N-AT1-30F10-01 14W/30W แบบ.130 ประเภท 1820/3900 SDCM<3/Ra80,90 IP20 L1460xW26xH24 17.4กก 25 ชิ้น

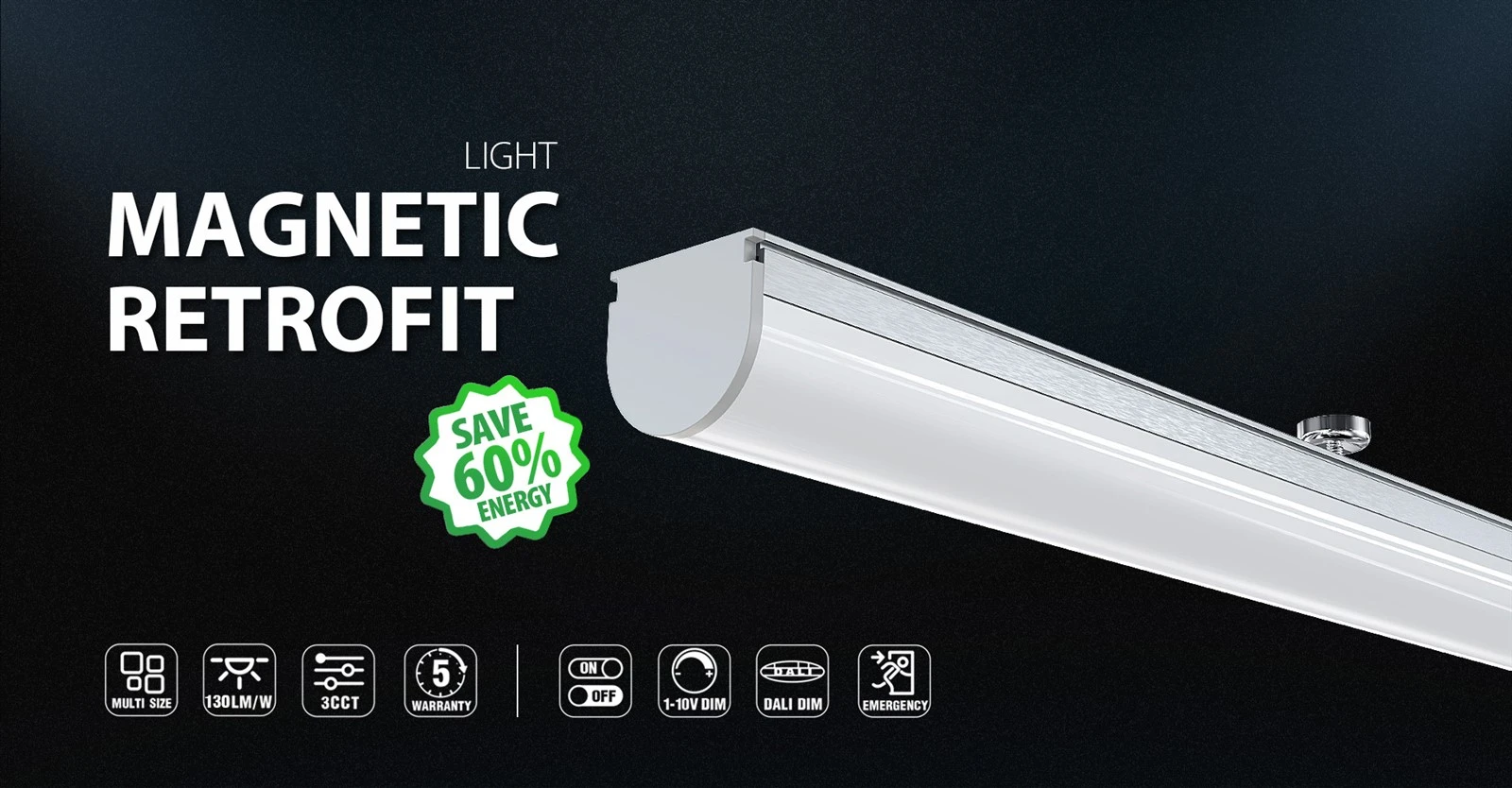

Magnetic Retrofit -1

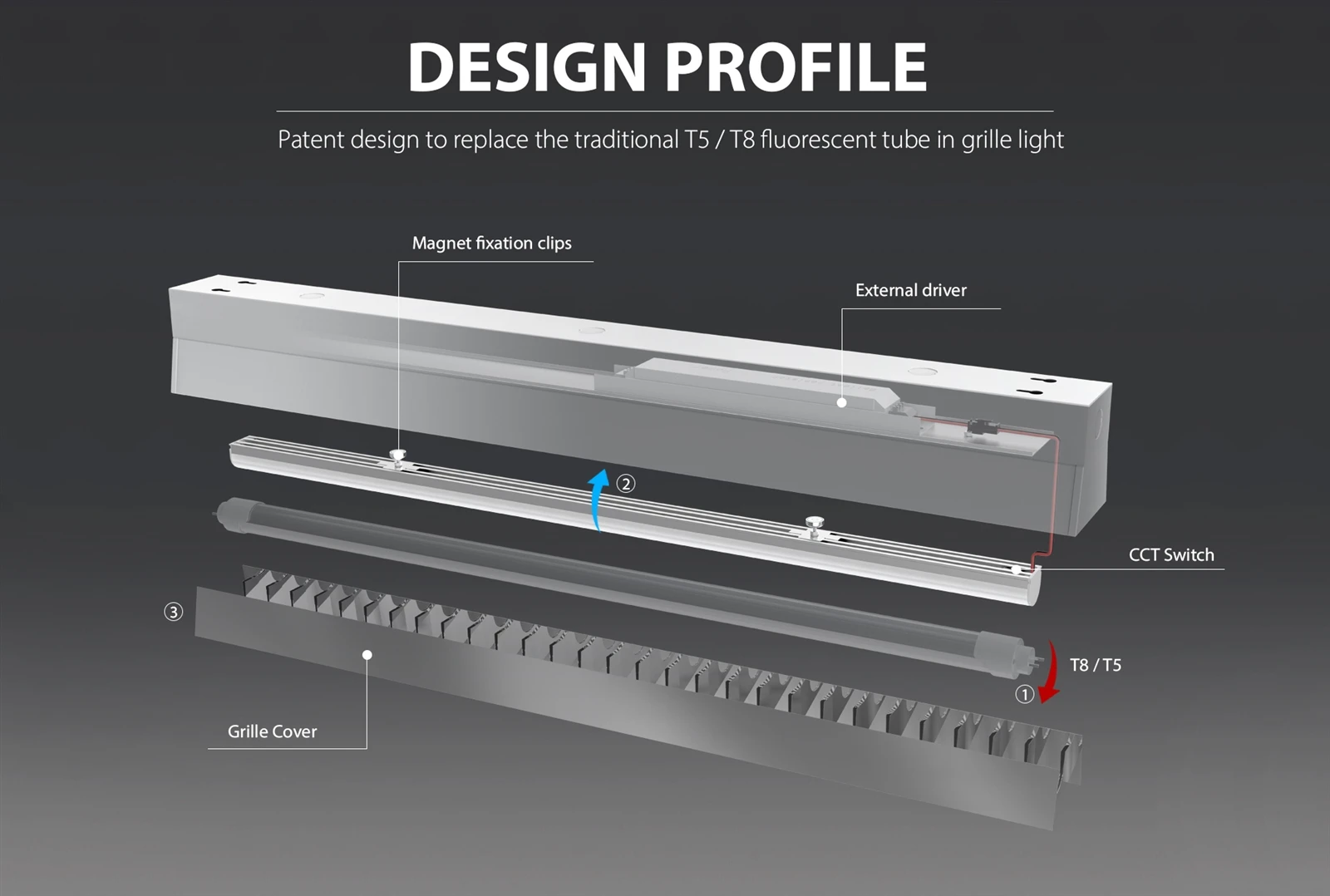

Magnetic Retrofit -2

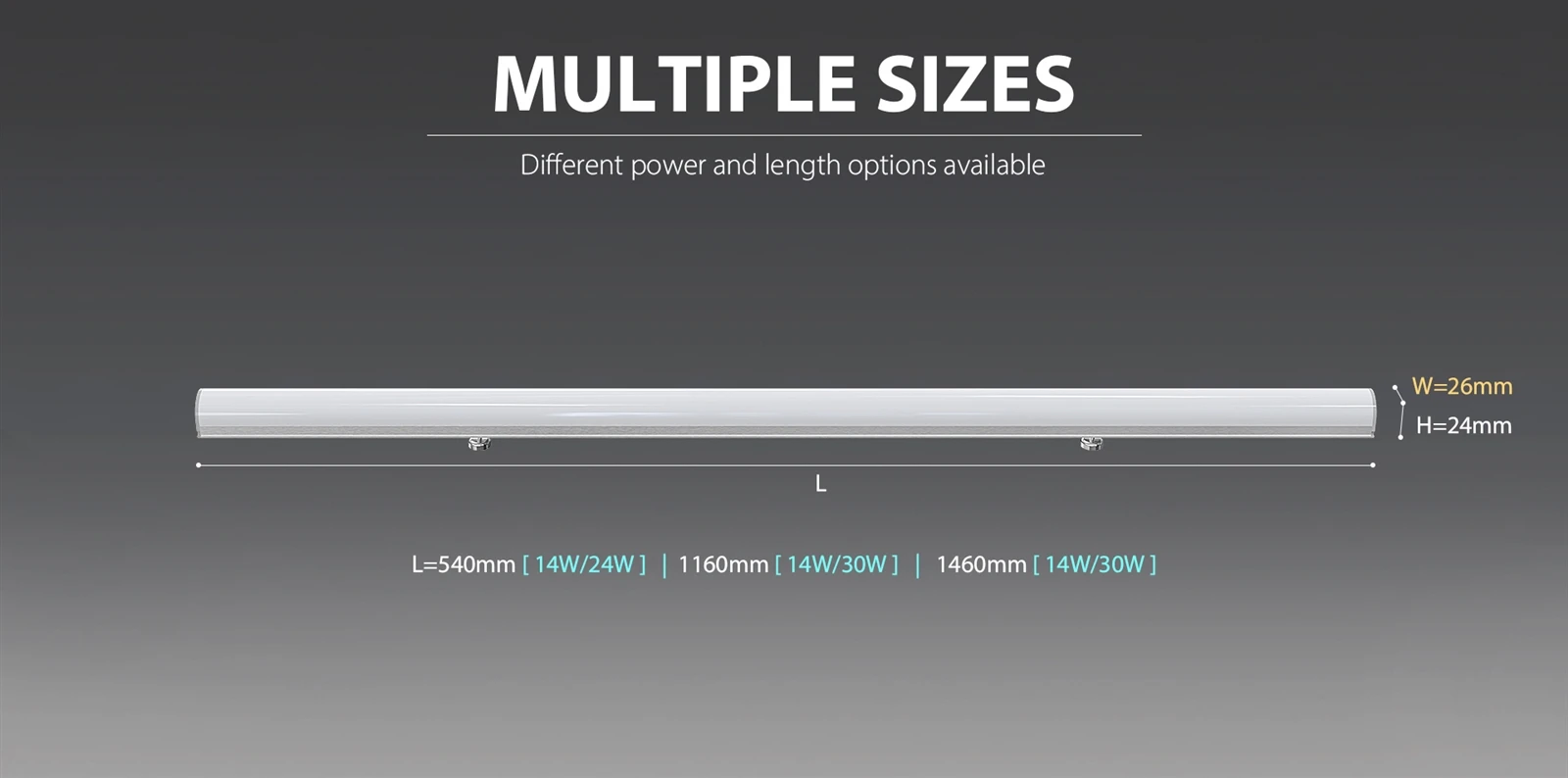

Magnetic Retrofit -3
